MynahSA::Archive Class Reference

#include <archive.hpp>

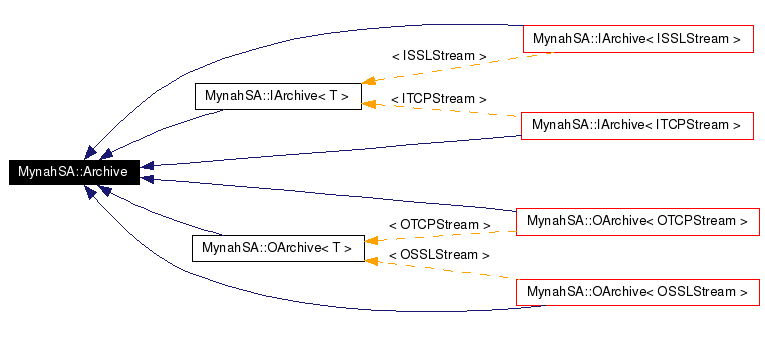

Inheritance diagram for MynahSA::Archive:

[legend]List of all members.

Public Member Functions
	Archive ()
	constructor
	Archive (const Archive &ar)
	copy constructor - copy constructor functions
	Archive (const std::map< std::string, SHARED_PTR< Archive::ArchiveConstructor > > &cons)
	construct with a pre-existing map of constructor functions
virtual	~Archive ()
	virtual destructor
void	registerConstructor (const std::string &name, const SHARED_PTR< ArchiveConstructor > &cons)
const std::map< std::string, SHARED_PTR< ArchiveConstructor > > &	getConstructors () const
	provide external access to constructor functions
virtual Archive &	operator & (long long &)=0
	archive long long
virtual Archive &	operator & (unsigned long long &)=0
	archive unsigned long long
virtual Archive &	operator & (unsigned int &)=0
	archive unsigned int
virtual Archive &	operator & (int &)=0
	archive int
virtual Archive &	operator & (short &)=0
	archive short
virtual Archive &	operator & (unsigned short &)=0
	archvie ushort
virtual Archive &	operator & (char &)=0
	archive char
virtual Archive &	operator & (unsigned char &)=0
	archive unsigned char
virtual Archive &	operator & (bool &)=0
	archive bool
virtual Archive &	operator & (float &)=0
	archive float
virtual Archive &	operator & (double &)=0
	archive double
virtual Archive &	operator & (std::string &)=0
	archive std::string
template<class T>
Archive &	operator & (std::vector< T > &v)
	archive a std::vector
template<class T>
Archive &	operator & (std::list< T > &l)
	archive a std::list
template<class a_type, class b_type>
Archive &	operator & (std::pair< a_type, b_type > &p)
	Archive a std::pair.
template<class value_type>
Archive &	operator & (std::set< value_type > &s)
	archive a std::map - store indicies and data
template<class index_type, class value_type>
Archive &	operator & (std::map< index_type, value_type > &m)
	archive a std::map - store indicies and data
template<class index_type, class value_type>
Archive &	operator & (std::multimap< index_type, value_type > &m)
	archive a std::map - store indicies and data
template<class T>
Archive &	operator & (SHARED_PTR< T > &ptr)
template<class T>
Archive &	operator & (T &x)
void	clearUPR ()
template<class T>
void	touchPtr (const SHARED_PTR< T > &ptr)
Protected Types
enum	ArchiveMode
Protected Member Functions
virtual ArchiveMode	getArchiveMode () const =0
Classes
class	ArchiveConstructor

---

Detailed Description

Archive is a pure base for classes IArchive and OArchive for input and output respectively.

Definition at line 43 of file archive.hpp.

---

Member Function Documentation

void MynahSA::Archive::clearUPR (   )

clearUPR - remove all unique pointer references from the archive, and free any associated memory by removing dangling SHARED_PTRs. This method servers an important purpose: When objects are serialized by SHARED_PTR, Archive holds a copy of the shared pointer. This is necessary s.t. multiple pointers to the same object do not cause multiple object to be transmitted. clearUPR must be called to free all such references. To make this explicit, here are two code sequences with explaination of what is being transmitted: Archive& archive; // some non-pure derivitive of MynahSA::Archive SHARED_PTR<ObjectType> sp1; // a shared pointer to a real instance archive << sp1; // transmit sp1 archive << sp1; // transmit sp1 This sequence causes the following information to be transmitted on the stream: [shared_pointer to ObjectType [(*sp1) details]] [unique pointer reference to sp1] whereas, this code sequence: Archive& archive; // some non-pure derivitive of MynahSA::Archive SHARED_PTR<ObjectType> sp1; // a shared pointer to a real instance archive << sp1; // transmit sp1 archive.clearUPR(); // remove all unique pointer references archive << sp1; // transmit sp1 caues the following to be emitted on the stream: [shared_pointer to ObjectType [(*sp1) details]] [shared_pointer to ObjectType [(*sp1) details]] Reimplemented in MynahSA::SSLArchiveStream, and MynahSA::TCPArchiveStream.

virtual ArchiveMode MynahSA::Archive::getArchiveMode (   )  const [protected, pure virtual]

return the archive mode - reader or writer. This is necessary for archiving certain STL types Implemented in MynahSA::IArchive< T >, MynahSA::OArchive< T >, MynahSA::IArchive< ISSLStream >, MynahSA::IArchive< ITCPStream >, MynahSA::OArchive< OTCPStream >, and MynahSA::OArchive< OSSLStream >. Referenced by operator &().

template<class T> Archive& MynahSA::Archive::operator & (  T &  x  )  [inline]

A template class handler - objects must be either enum type (as identified by is_enum , or provide a serialize method Note: archiving of array types is supported on gcc, and Microsoft VC++ 2003+ using the following template: ar & arrayType; // where ar is an archive instance on SUNpro 5.8 the compiler cannot differentiate the use of operator& and the "address of" operator. Therefore, the following code fragment must be used: ar.operator&(arrayType); Definition at line 344 of file archive.hpp. { // a bit of template meta-programming, serializeArray(x, MynahSA::array_t<T>()); return *this; }

template<class T> Archive& MynahSA::Archive::operator & (  SHARED_PTR< T > &  ptr  )  [inline]

Archive operator& for shared pointer types. Note that this code path is forked depending on whether or not the type being serialized is a fundamental type (fundamental_t) e.g. int, char, etc... or a complex type. Complex types must derive from class IoBase; Definition at line 322 of file archive.hpp. { return archiveSP(ptr, fundamental_t<T>()); }

void MynahSA::Archive::registerConstructor (  const std::string &  name, const SHARED_PTR< ArchiveConstructor > &  cons )  [inline]

register a constructor object with this iarchive instance - this is necessary for restoration of objects pointed to by shared pointers. Note: Ownership of the IArchiveConstructor is taken by this class. Reimplemented in MynahSA::SSLArchiveStream, and MynahSA::TCPArchiveStream. Definition at line 83 of file archive.hpp. { _constructors[name] = cons; }

template<class T> void MynahSA::Archive::touchPtr (  const SHARED_PTR< T > &  ptr  )  [inline]

touch a pointer - this indicates to the archiver that it should place a real pointer onto the stream and not a pointer reference. Definition at line 387 of file archive.hpp. { SHARED_PTR<void> value(STATIC_PTR_CAST<void>(ptr)); // fetch pointer value std::map<SHARED_PTR<void>, unsigned int>::iterator mit = _ptrToUPR.find(value); // find its universal pointer value if (mit != _ptrToUPR.end()) { unsigned int upr = (*mit).second; _ptrToUPR.erase(mit); // get rid of the upr and pointer associated std::map<unsigned int, SHARED_PTR<void> >::iterator mit2 = _uprToPtr.find(upr); if (mit2 != _uprToPtr.end()) { _uprToPtr.erase(mit2); } } }

---

The documentation for this class was generated from the following file:

• mynahsa/archive.hpp
